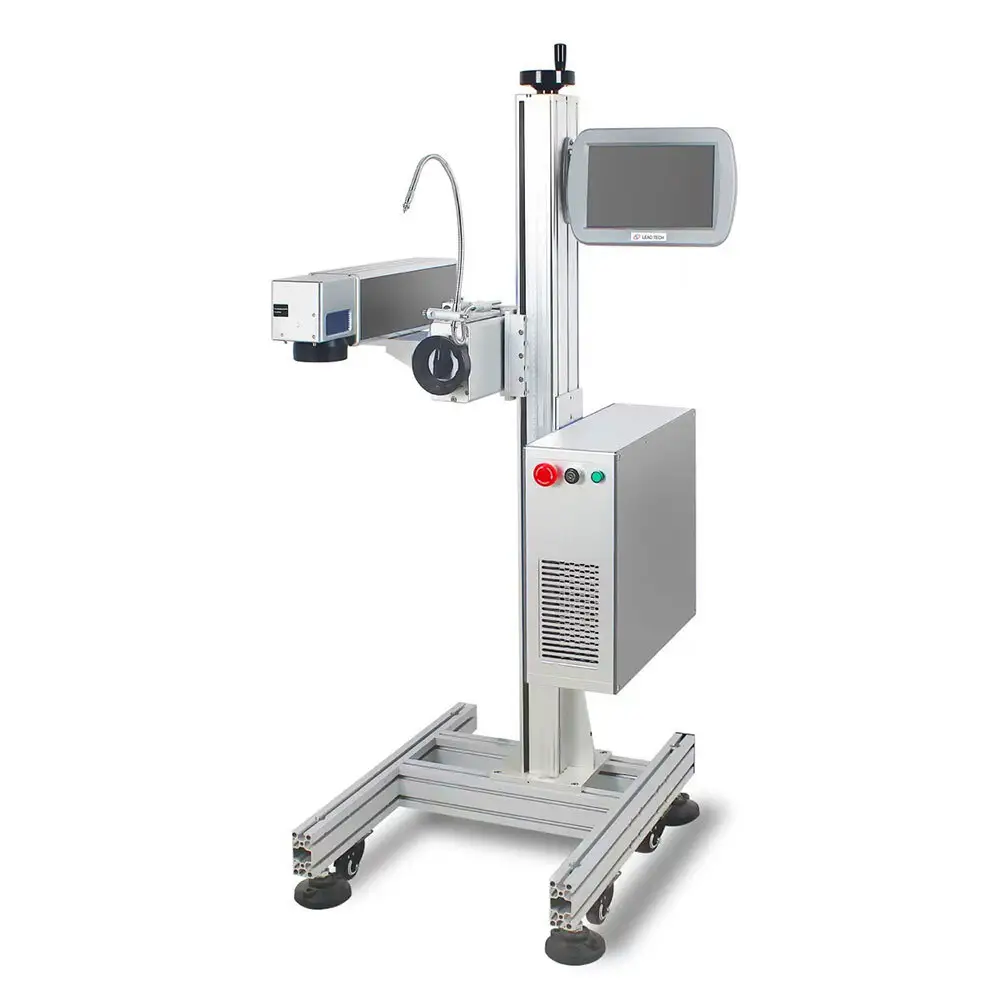

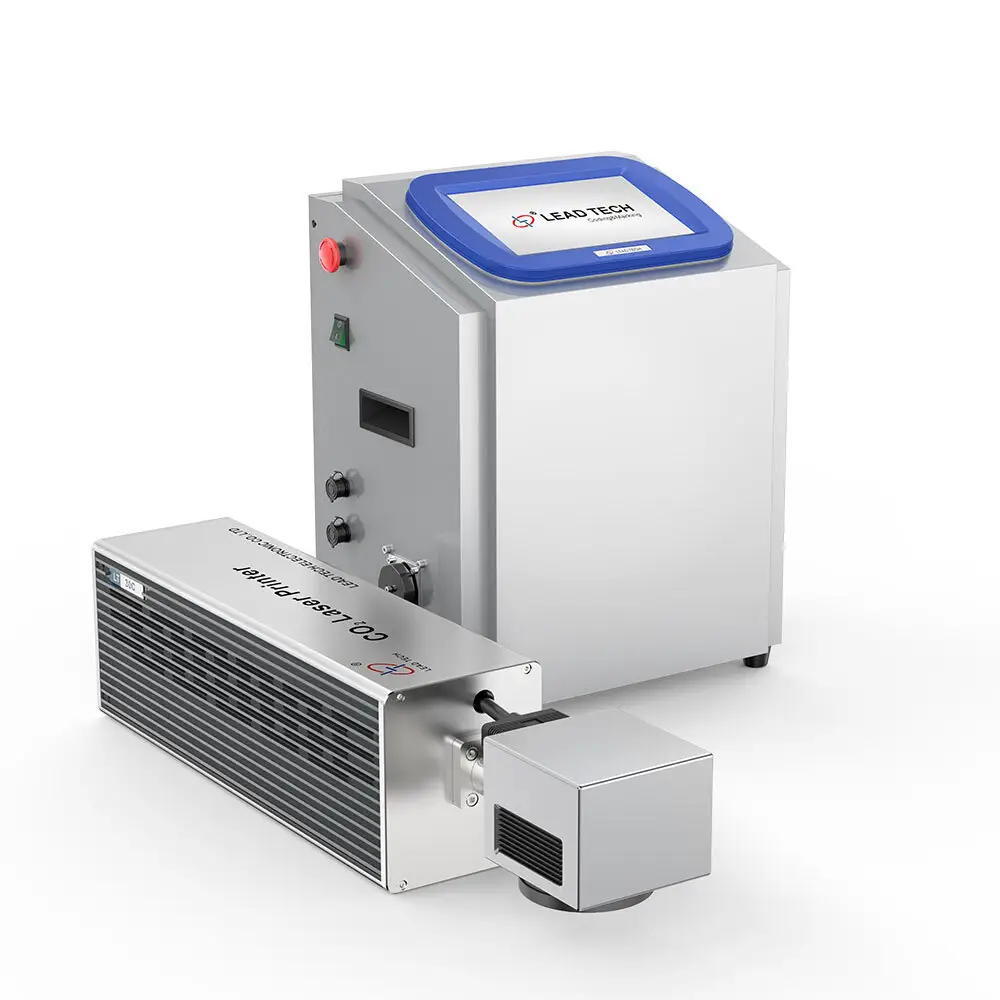

60W CO2 Laser Marking Machine
CO2 Laser Marking Machine
LEAD TECH New Compact 60W CO2 laser marking machine is designed for providing high quality codes for large-scale substrates and is easy to integrate for most of applications. It is an ideal solution for marking on PET bottles, plastics,PP/PE films, boxes, cartons and other primary coding applications to produce high quality visible codes at fast speed with nearly zero maintenance and no consumables required.
◎ No consumables,long-term maintenance-free
◎ Marking speed: 200m/min
◎ Average output power: 60W
Laser type | LEAD TECH 60W CO2 Laser Printer |
Model | LT60C |
Output Power | ≥60W |
Lens | High precision 2 dimensional scanning system |
Laser wave length | 10.55μm-10.6.μm |
Marking speed | ≤8000 mm/s |
Main control system | Highly integrated mainboard, Embedded 10.4 inch controller |
Cooling system | Air cooled |
Focus zoom lens | 130mm double red light focusing |
Marking scale type | Raster font, vector font for choosing |
Min.line width | 0.1mm |
Repeatability accuracy | 0.01mm |
Working area | 100~300mm (range optional) |
Positioning | Red light positioning and double red light focusing |
Lines of marking | No limited in working area |
Speed | 0~200m/min |
Power | 220VA (110VA can be connected) |
Power Consumption | 500W |
Reliable & High Performance
* Optimized power output to ensure longer lifetime
* No consumables, long term maintenance free
* Working life up to 100,000 hours
* IP54 rating ensures maximum reliability and uptime
High Quality Coding
* Clear & permanent codes, easy to read
* Engrave technology for anti-counterfeiting and traceability
Increase Product Efficiency
* Advanced system ensures messages in fast processing
* Line speed up to 200m/min
* Used in medium-speed or high-speed production lines
Easy to Use
* New compact design, easy to install anywhere
* 10.4 inch touch screen, WYSIWYG, easy to operate
* Support up to 14 languages, meet what you need
Plastic
Paperboard
Flexible Film
Wood and Lumber
Laser type |  LEAD TECH 60W CO2 Laser Printer |  LEAD TECH 30W CO2 Laser Printer |
Model | LT60C | |
Output Power | ≥60W | ≥30W |
Lens | High precision 2 dimensional scanning system | |
Laser wave length | 10.55μm-10.6.μm | 10.64.μm/10.2.μm/9.3.μm |
Marking speed | ≤8000 mm/s | |
Main control system | Highly integrated mainboard, Embedded 10.4 inch controller | |
Cooling system | Air cooled | |
Focus zoom lens | 130mm double red light focusing | |
Marking scale type | Raster font, vector font for choosing | |
Min.line width | 0.1mm | 0.03mm |
Repeatability accuracy | 0.01mm | |
Working area | 100~300mm (range optional) | 110X110mm |
Positioning | Red light positioning and double red light focusing | |
Lines of marking | No limited in working area | |
Speed | 0~200m/min | |
Power | 220VA (110VA can be connected) | |
Power Consumption | 500W | |
