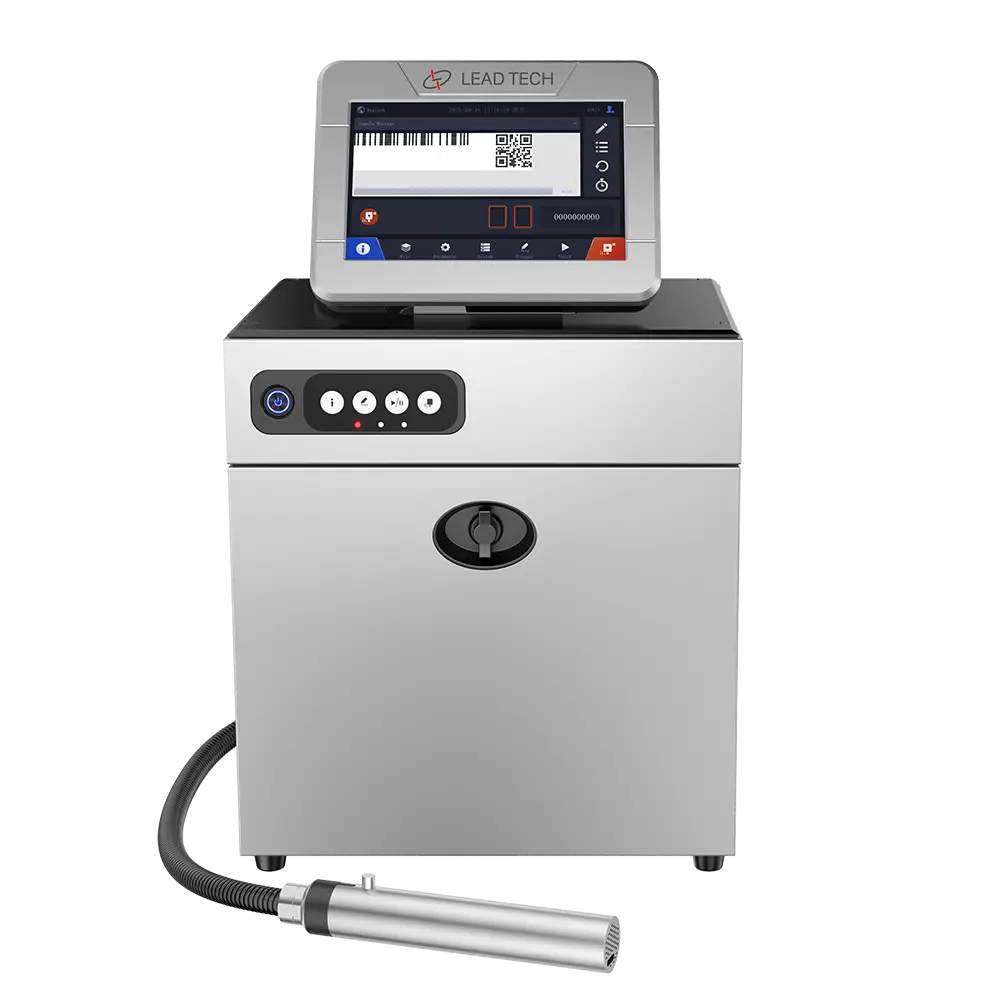

i9 Micro CIJ Printer
i9 Series
One-key shutdown operation, combined with trigger pause function and remote control upgrades are more in line with the operator's habits. 10.4-inch touch screen can be separated from the host for more flexible on-site installation applications.
The new generation of printing can still work normally after a long downtime, supports DM/QR code printing and rich data serial connection to facilitate perfect connection with the production line.
Model | LEAD TECH i9 Micro Inkjet Printer |
Model | i9 Micro |
Material | Stainless steel+Precision coating |
Printing Performance | 1-4 Lines(7X5matrix) 1-5 Lines(5X5 matrix) Max. speed=537m/mind5X5 |
Font Matrix | Single-Line:5X5,7X5,9x6,12X8,16X11,19X14,24X17,32X22 3 Lines:5X5,7X5,9x6 5 Lines:5X5 Twin-Line:5X5,7X5,9x6,12X8,16X11 4 Lines:5X5,7X5 |
Printing Distance | Font Height:0.8-12mm Printing distance:2mm to 30 mm Best : 10mm |
Operating System | LT-Touch unique System, Multiple Languages |
Print Content | English, Chinese, Arabic Numbers, serial number,Bar code, Shift, DM/QR Code, UPC A&E,GS1, logo. EAN 8 & 13, UCC/EAN 128,Code 128 A, B & C, Code 39, Code 125, automatic date/time/expiry date, special characters, etc. |
Extra Memory | USB,RS485,RS232,BCD,Ethernet |
System Language | Chinese,English,Korean,Russian,Polish,Persian,Arabic,Spanish,German, Indonesian, Vietnamese, Croatian, Thai, Slovenian, Slovak, Bosnian, Portuguese, Italian,etc,customizable language |
Memory Storage | 1000+Messages |
Industrial Protection | IP55, IP65 (Option) |
Printhead | Super soft, length 3m constant temperature,40μm |
Printing Direction | 360° All-round printing |
Cartridge Volume | Ink (750ml) Make-up (750ml) |
Temperature/ Humidity range | 0-50℃ 0-95% Relative Humidity, Non-condensing |
Power | 100-120/200-240V~ , 50-60Hz , 1.1 - 0.55A , 120W |
Friendly User Interface
10.4 inch Touch Screen
Quick Startup (57 seconds)
One Button Turn ON/OFF
Multiple Language Interface
IoT Industry 4.0
RS485, USB & Ethernet Connections
Support Data Matrix & QR Code Printing
Remote Upgrade of Software & Firmware
New Generation Printhead
Innovative Printhead with Twin-valves
Injection Molding Technology to Prevent Ink Leakage
Auto-cleaning to Ensure Longer Uptime
Stable Ink System
Auto Filling Startup
More Stable Pressure
Durable InkCore Design, Easy to Replace
Auto Modulation Function without Adjust Manuall
Plastic
Plastic Rigid COntainers
Paper Cartons
Metal Cans
Model |  i9 Micro | | | ||
Material | Stainless steel+Precision coating | ||||
Printing Performance | 1-3 Lines(7X5 matrix） 1-4 Lines(5X5 matrix） Max. speed=267m/min@5X5 | 1-4 Lines (7X5matrix) 1-5Lines(5X5 matrix) Max. speed=344m/min@5X5 | 1-4 Lines(7X5matrix) 1-5 Lines(5X5 matrix) Max. speed=430m/min@5X5 | ||
Font Matrix | Single-Line:5X5,7X5,9x6,12X8,16X11,19X14,24X17 Twin-Line:5X5,7X5,9x6,12X8 3 Lines:5X5,7X5 4 Lines:5X5
| Single-Line:5X5,7X5,9x6,12X8,16X11,19X14,24X17,32X22 Twin-Line:5X5,7X5,9x6,12X8,16X11 4 Lines:5X5,7X5 3 Lines:5X5,7X5,9x6 5 Lines:5X5 | |||
Printing Distance | Character height:0.8-12mm Printing distance:2mm to 30 mm Best : 10mm | Character height:1-15mm Printing distance:2mm to 30 mm Best : 10mm | |||
Operating System | LT-Touch unique System, Multiple Languages | ||||
Print Content | English, Chinese, Arabic Numbers, serial number, Bar code, Shift, DM/QR Code, UPC A&E,GS1, logo, EAN 8 & 13, UCC/EAN 128,Code128 A,B & C, Code 39, Code 125, automatic date/time/expiry date, special characters, etc. | ||||
Extra Memory | USB.RS485,RS232,BCD.Ethernet | ||||
System Language | Chinese,English,Korean,Russian,Polish, Persian,Arabic,Spanish,German, Indonesian, Vietnamese, Croatian, Thai, Slovenian, Slovak, Bosnian, Portuguese, Italian,etc.customizable language | ||||
Memory Storage | 1000+Messages | 1000+Messages | 1000+Messages | ||
Industrial Protection | IP65 | IP65 | IP65 | ||
Printhead | Super soft, length 3m constant temperature,40μm | Super soft, length 3m constant temperature,60μm | Super soft, length 3m constant temperature,50μm | ||
Printing Direction | 360° All-round printing | ||||
Cartridge Volume | Ink (750ml) Make-up (750ml) | ||||
Temperature/ Humidity range | 0-50℃ 0-95% Relative Humidity, Non-condensing | ||||
Power | 100-120/200-240V~ , 50-60Hz , 1.1 - 0.55A , 120W | ||||
